Launch date: 9 March

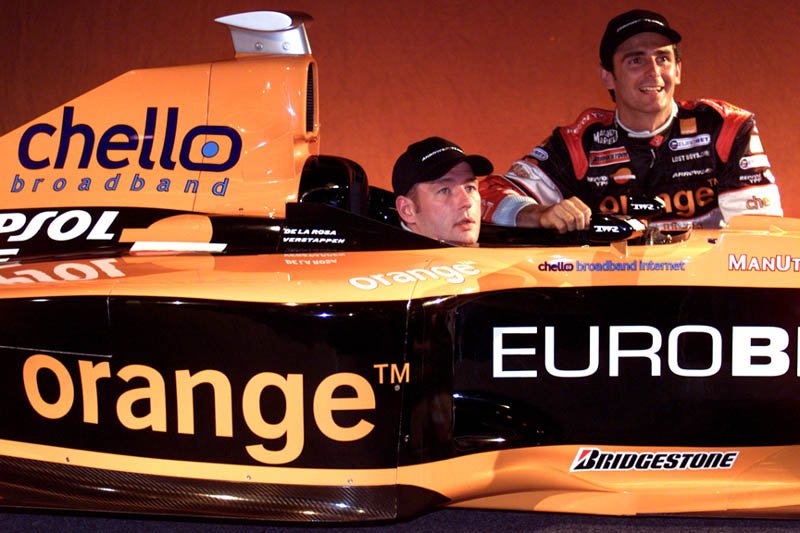

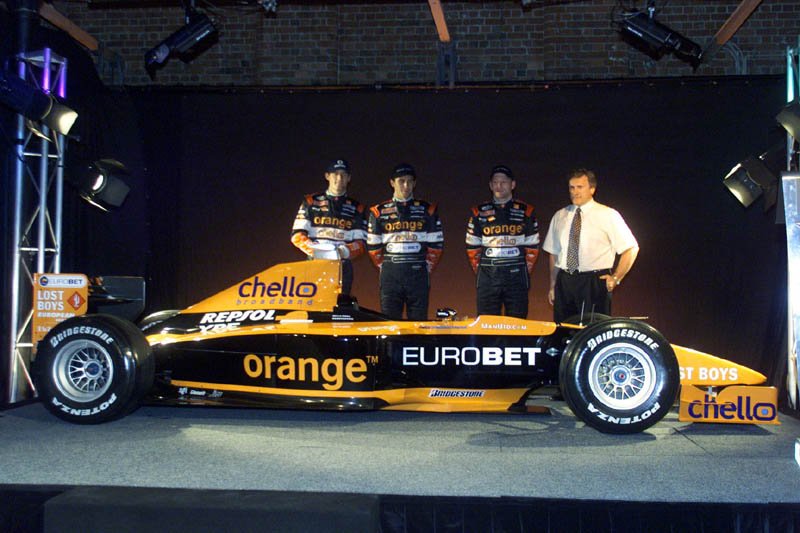

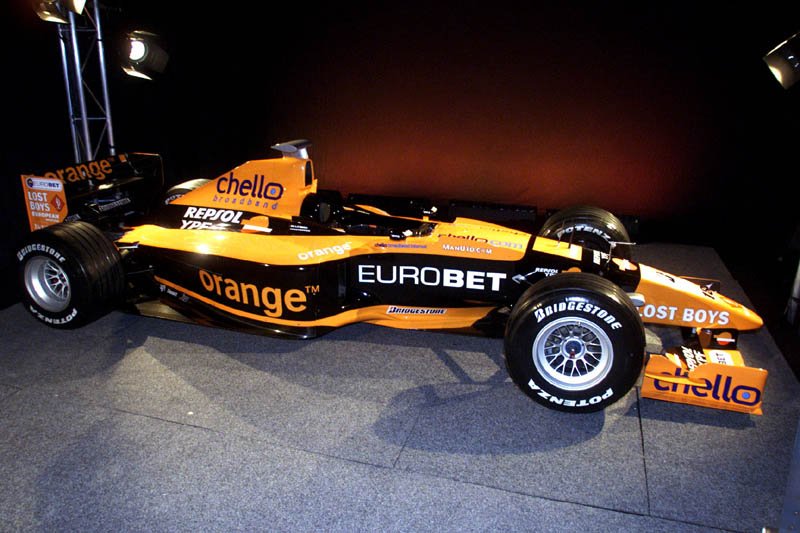

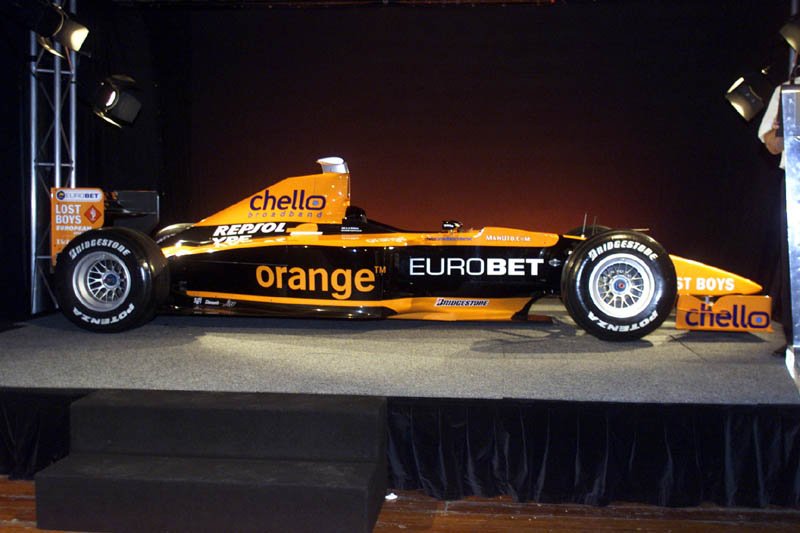

Arrows A21
Confirmed Drivers
 |
 |
| Pedro Martinez De La Rosa |
Jos Verstappen |
A21 - Technical Info
|
Chassis: |
A21 - Arrows manufactured Carbon Monocoque with Kenlar Crash Resistant Sides |
|
Suspension: |
Inboard operated independent suspension; carbon fibre wishbones with FIA tether restraint system front and rear |
|
Steering: |
Arrows rack and pinion |
|
Cooling system: |
Separate oil and water radiators |
|
Transmission: |
Arrows/Xtral 6-speed semi-automatic, in-line configuration |
|
Clutch: |
Arrows (Carbon) |
|
Brakes: |
Single 6 pot calipers front and rear |
|
Wheels: |
One piece Magnesium 13 x 12 front, 13 x 13.7 rear |
|
Tyres: |
Bridgestone |
|
Cockpit Instrumentation: |
Arrows Data Display |
|
Drivers Seat: |
Arrows carbon fibre |
|
Steering Wheel: |
Arrows |
|
Extinguisher System: |
Arrows single bottle system |
|
Paint System: |
Glasurit |
|
Front Track: |
1465mm |
|
Rear Track: |
1410mm |
|
Wheelbase: |
2995mm |
|
Weight: |
600kg including driver and camera(s) or ballast |
|
Overall car length: |
4430mm |
|
Height: |
1 metre |
|
Width: |
1798mm |
|
Gearbox: |
Arrows Carbon Fibre |
|
Gear Selection: |
Electro-hydraulic |
|
Throttle: |
Electro-hydraulic |
|
Pedals: |
2 |
|
Electronics: |
Arrows/PI Sigma |
|
Fuel system: |
Arrows/ATL |
|
Fuel Tank Capacity: |
130 Litres |
|
Dashboard/ Instruments: |
Arrows |
SuperTec FB02 Engine Technical Info
|
Designation: |
Supertec FB02 |
|
Number of cylinders: |
10 |
|
Configuration: |
71 degree vee |
|
Number of Valves: |
40 |
|
Displacement: |
Not disclosed |
|
Power Output: |
Not disclosed |
|
Materials used: |
Cylinder block - Aluminium, Crankshaft - Steel |
|
Fuel Management System: |
Magneti Marelli Electronic |
|
Ignition System: |
Magneti Marelli Static |
|
Lubrication System: |
Dry Sump |
|
Spark Plugs: |
Champion |
|
Weight: |
118kg ECU and electrical equipment included |
|
Dimensions: |
Length 623mm |
|
Width |
517mm |
|
Height |
(without airbox) 393mm |
