Launch date: 31 January

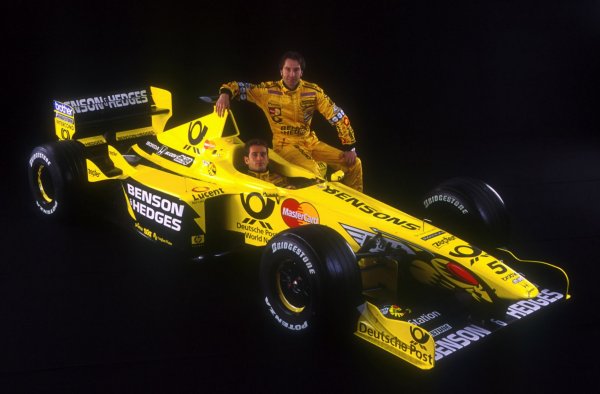

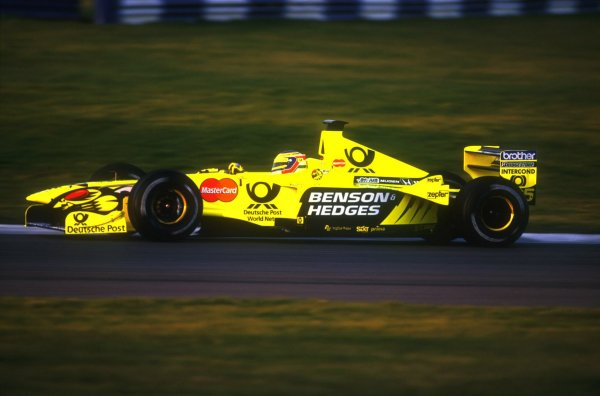

The Jordan EJ10
Confirmed Drivers
 |
 |
| Jarno Trulli | Heinz-Harald Frentzen |
EJ10 Technical Info
| Chassis | Full Carbon fibre composite monocoque. |
| Front Suspension | Composite pushrods activting chassis mounted Penske dampers and torsion bars, unequal length aerodynamic wishbones, composite top and bottom wishbones, titanium fabricated uprights and front anti-roll bar. |
| Rear Suspension | Composite pushrods activating gearbox mounted Penske dampers, unequal length aerodynamic wishbones, composite wishbones, titanium fabricated uprights and rear anti-roll bar. |
| Transmission | In house Jordan Grand Prix design. 6 speed + reverse longtitudal gearbox with electrohydraulic sequential gear change. |
| Wheel Base | 3050mm |
| Front Track | 1500mm |
| Rear Track | 1418mm |
| Overall Height | 950mm |
| Overall Length | 4550mm |
| Overall Weight | 600kg with driver |
| Clutch | Triple plate Jordan/sachs racing clutch |
| Brakes | Brembo braking system |
| Wheels | Forged OZ racing to Jordan GP specification |
| Tyres | Bridgestone |
| Fuel Tank Capacity | Over 100kg |
| Engine | Mugen-Honda MF-301HE |
| Type of Engine | V10 Normal aspiration |
| Capacity | 3.0 litres |
| Brake Horsepower | Over 770ps (over 556kw) |
| Overall length | Under 620mm |
| Overall width | Under 520mm |
| Overall Height | Under 400mm |
| Cylinder Heads | 4 valves per cylinder |
| Injection system | Honda PGM-F1 |
| Ignition system | Honda PGM-1G |
| Official Website | http://www.jordangp.com/ |
