Minardi

Minardi


Launch date: 16 February

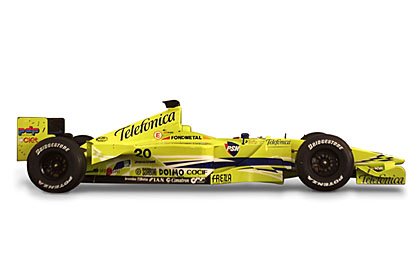

M02 - side view

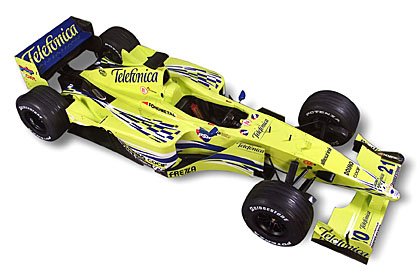

M02 - three quarters view

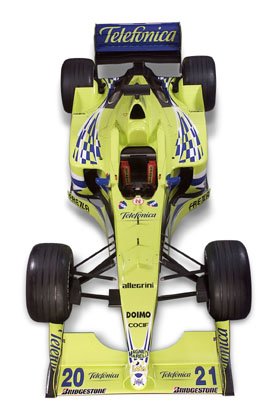

M02 - top view

The Minardi M02


Confirmed Drivers

Marc Gene Gaston Mazzacane
Marc Gené Gaston Mazzacane


M02 Technical Info

Chassis monocoque body in carbon fibre
and aluminium honeycomb composite;
2 pedals
Bodywork, wings carbon fibre
Suspension in carbon push-rod with torsion bars;
steel wishbones;
F/S shock absorbers
Steering a rack and pinion;
steering wheel (dia. 275) in carbon
with clutch and gear levers integrated
Brakes Brembo six piston calipers, front and rear,
Brembo and Carbone Industrie
carbon fibre brake disks;
hydraulic brake balance adjuster
Gearbox Minardi longitudinal with magnesium casing,
six-speed plus reverse,
semi-automatic with Magneti Marelli
electronic control (Minardi software)
Differential Minardi viscous
Clutch Ap Racing, three-disk in carbon fibre
Wheels in magnesium
  • front 13" x 12.0"
  • rear 13" x 13.7"
Dimensions
  • length 4420 mm
  • width 1800 mm
  • front track 1452 mm
  • rear track 1420.7 mm


Fondmetal V10 Engine Technical Info

Name Fondmetal V10
Number of cylinders 10
Configuration 72 degree vee
No. valves 40
Capacity 2998 cc
Materials cylinder block aluminium
Engine management
system		 Magneti Marelli Step 8 software
to Minardi spec.
Lubrication system dry sump
Ignition system Magneti Marelli
Spark plugs Champion

Official Websitehttp://www.minardi.it/
