Launch date: 2 February

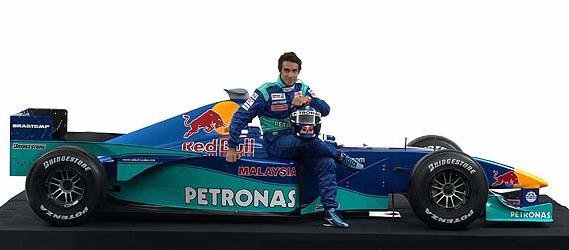

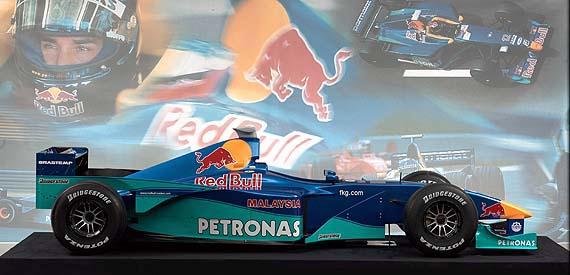

The Sauber C19

Confirmed Drivers

Mika Salo	Pedro Diniz

C19 Technical Info

Chassis:	Carbon fibre monocoque
Engine:	SPE 04A
Front Suspension:	Upper and lower wishbones, inboard springs and dampers (Sachs), actuated by pushrods
Rear Suspension:	Upper and lower wishbones, inboard springs and dampers (Sachs), actuated by pushrods
Brakes:	Six-piston calipers (Brembo) front and rear; carbon pads and discs (Carbone Industries/Brembo)
Transmission:	Semi-automatic, longitudinally mounted, seven-speed transmission (Sauber), carbon clutch (Sachs)
Chassis Electronics:	Magneti Marelli
Tyres:	Bridgestone 265/55R13 front 325/45R13 rear
Wheels:	O.Z. 12J13 front 13.7J13 rear
Dimensions:	Length: 4.410 mm Width: 1.800 mm Height: 1.000 mm Front Track: 1.470 mm Rear Track: 1.410 mm Wheel base: 3.020 mm
Weight:	600 kg (including liquids and driver)

SPE 04A Engine Technical Info

Official Designation:	SPE 04A
Number of Cylinders:	10
Configuration:	80-degree V
Displacement:	2997 cc
Cylinder Block:	Aluminium
Number of Main Bearings:	6
Number of Camshafts:	4 OHC
Camshaft Drive:	Gears
Number of Valves:	40
Valve Mechanism:	Pneumatic
Ignition System:	Magneti Marelli
Injection:	Magneti Marelli
Oil System:	Dry sump
Weight:	110 kilograms
